310-1000 Iron Might Pump Wet End 0.5HP

Write a Review
SKU:
310-1000
MPN:
310-1000
Availability:
310-1000
$166.44

Description

DISCONTINUED  see the complete Iron Might pump in either 115v or 230v version.

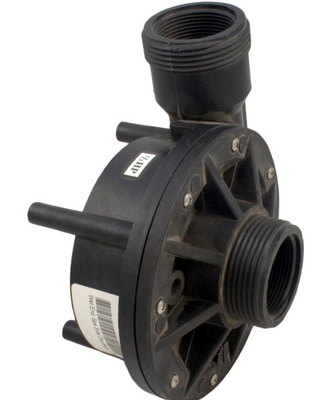

310-1000 Iron Might Pump Wet End 0.5HP is 1-1/2"mbt/fpt 48 frame.





Waterway Iron Might Wet End 1/2 HP, 1/15 HP

Side discharge, 1-1/2"mbt suction/discharge, 48 frame wet end for the Waterway Iron Might pump.

This wet end is used with a 1.0hp, 48 frame, thru-bolt style motor. The motor used may be either a single or dual speed. The wet end may be rotated 90° to change the discharge position.

The complete wet end includes: the volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring and suction cover screws.

Motor and unions sold separately.

This wet end uses an impeller rated at 1hp. When installed on a motor that turns at 1725 RPM, the pump becomes 1/15th horsepower.

This wet end replaces 314658 , 5030-221 .

We also offer 0602-15 unions.




1 Screw, WW E-Series/Hi-Flo/Viper/Workman/EX2, 8-32 x 5/8" 819-1110
2 Faceplate, Waterway SpaFlo/Iron Might 311-1060
3 O-Ring, Buna-N, 4-3/4" ID, 1/8" Cross Section, Generic O-439
4 Impeller, Waterway Iron Might/Uni-Might, 1/8Horsepower 310-0900
4 Impeller, Waterway SpaFlo, 1.0 Horsepower 310-4060
4 Impeller, Waterway SpaFlo, 1.5 Horsepower 310-4070
5 Shaft Seal, PS-3865, 5/8" Shaft, Viton PS-1000 PS-3865R
5 Shaft Seal, PS-1000, 5/8" Shaft, Buna PS-1000
5 Shaft Seal, PS-1905, 5/8" Shaft, Silicon Carbide PS-1000 PS-1905
5 Shaft Seal, PS-961, 5/8" Shaft, Buna, Carbon Face PS-961
6 Volute, Waterway Spa Flo/Iron Might, 1-1/2" 315-1060
7 Pump Union, 1-1/2" Female Buttress Thread x 1-1/2" Slip 0602-15
8 O-Ring, Buna-N, 1-7/8" ID, 1/8" Cross Section, Generic O-287
9 Trap Assy, WW Ctr Disch/Spa-Flo, 1-1/2"Union x 1-1/2"mbt/fpt 310-5400
10 Trap Lid, Waterway Hi-Flo/Mustang/Workhorse/Workman 319-4100
11 O-Ring, Buna-N, 5-7/8" ID, 1/4" Cross Section, Generic O-318
12 Basket, Pump, OEM Waterway 6" Trap 319-3230
13 Trap Body, Waterway, 1-1/2"mbt/1-1/2"fpt x 2" flange 319-2170
14 O-Ring, Buna-N, 7/16" ID, 3/32" Cross Section, Generic 805-0111
15 Drain Plug, Waterway 715-1201
16 Split Nut, 2", Pump Union blk 121109020
17 Gasket, Waterway, 2" Union 711-4010
18b Wet End, WW Iron Might 0.5hp 1-1/2"mbt/fpt 48fr 310-1000
19a Pump,WW Spa Flo,2.0hp,230v,2-Spd,48fr,1.5",OEM 3420820-0Z
19a Pump, WW Spa Flo, 1.0SPL, 115v, 1-Spd, 48fr, 1.5", OEM 3410410-0Z
19a Pump, WW Spa Flo, 1.5SPL, 115v, 1-Spd, 48fr, 1.5", OEM 3410610-0Z
19a Pump,WW Spa Flo,2.0hp,115v/230v,1-Spd,48fr,1.5",OEM 3410830-0Z
19b Pump,Circ,WW Iron Might,1/15hp,1.3A,115v,48fr,OEM 3410030-1E
19b Pump, Circ, WW Iron Might, 1/15hp US Motors, 115v,1-1/2"48fr 3410030-1EHZN
19b Pump, Circ, WW Iron Might, 1/15hp Century,1-1/2", 115v, 48fr 3410030-1EHZW
19b Pump, Circ, WW Iron Might, 1/15hp, 0.63A, 230v, 48fr, OEM 3410020-1E
19b Pump, Circ, WW Iron Might, 1/15hp US Motors,1-1/2",230v,48fr 3410020-1EHZN
19b Pump, Circ, WW Iron Might, 1/8hp Century,1-1/2", 230v, 48fr 3410020-1EHZW
20a Motor, Century, 1.0 Horsepower, 115v, 1 Speed, 48 Frame BN-25V1
20a Motor, Century, 1.5 Horsepower, 115v/230v, 1 Speed, 48 Frame BN35V1
20a Motor, Century, 2.0 Horsepower, 115v/230v, 1 Speed, 48 Frame BN40SS
20a Motor, Century/WW, 2.0hp, 115v/230v, 1-Speed, 48 Frame BN40
20a Motor, US Motor/WW, 1.0SPL, 115v, 1-Speed, 48 Frame EZBN25
20b Motor, Century/WW, 1.0hp, 115v, 2-Speed, 48 Frame BN37V1
20b Motor, Century, 1.5 Horsepower, 115v, 2 Speed, 48 Frame BN50V1
20b Motor, Century/WW, 1.5hp, 230v, 2-Speed, 48 Frame BN34V1
20b Motor, Century/WW, 3.0SPL, 230v, 2-Speed, 48 Frame BN61
20b Motor, Century, 2.0 Horsepower, 230v, 2 Speed, 48 Frame BN51
20b Motor, US Motor/WW, 1.0SPL, 115v, 2-Speed, 48 Frame EZBN37
20b Motor, US Motor/WW, 1.5SPL, 115v, 2 Speed, 48 Frame EZBN50
20b Motor, US Motors/WW, 3.0hp, 230v, 2-Speed, 48 Frame SPH30FL2S
