Baker Hydro Marquis 10kW 240V Dual Element Heater Element 10-3.5-0 25-2477-9

DISCONTINUED  contact us for options

Baker Hydro Marquis 10kW 240v Dual Element model 10-3.5-0 replaces Heater Element 25-2477-9.

New model dual element 10kw heater 10-3.5-0.  Square gasket also available if needed (sold separately at link below if needed)

Replacement element 4" x 4" flange element . gasket available separately 74-0022 - has a circular bolt hole pattern for round manifold.

Heater Element, Square Flange, Baker Hydro, 4" x 4", 10kW (Dual Element) 230V, 11.5" Immersion, Less Gasket, use part 74-0022 if needed.

You may also need the 4x4" square gasket (not included) - it looks like this.

Also used for Compak and Spa Center.

This is a 230v heater element that operates at 10kW for Baker Hydro and Marquis equipment.

Mounting posts are 1 inch apart (center to center)

and the 2 rows are 3/4 inches apart (center of post to center of post).

8 mounting holes in flange and gasket.

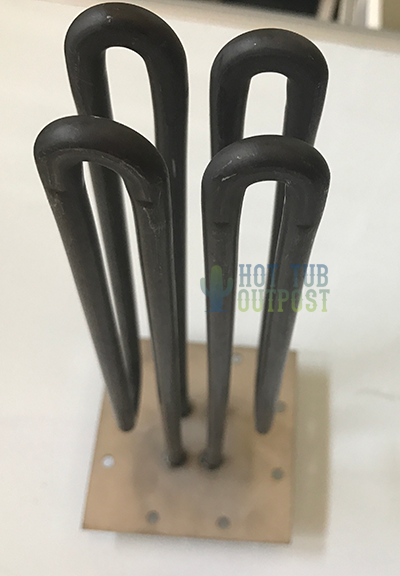

Below are the discontinued Therm Products 10kW heater element 10-3.5-0 model 25-2477-9 pictures.  This Baker Hydro heater is a direct replacement.

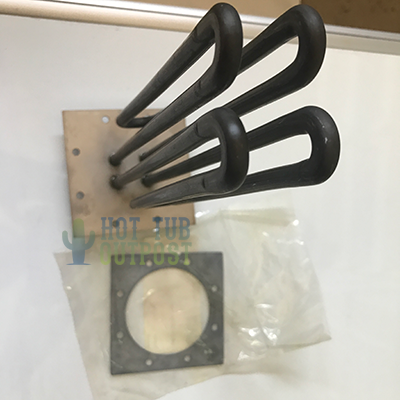

10kW heater and also shows gasket (available separately if needed)

Old Therm version of this heater was 9kW, the new one is 10kW.
