Balboa Serial Deluxe Control Panel 54108 VL801D

Serial Deluxe Panel for M2 & M3 with Phone Plug Connector. This Balboa control panel 54108 is the Balboa VL801D type panel with 8 buttons and LCD. The 8 button overlay is included.

Includes Time, warm blower, light, mode, cool, jet1, jet2 buttons.

Replaces Balboa topside panels 51790 54108-01 NSBI54108 NSBI5410801 and is used with the new Balboa M-2 and M-3 systems.
Works with Balboa deluxe and Standard digital circuit boards like 54122 and Deluxe Millenium Caldera circuit boards like 51823.

When using this panel to replace Balboa 51063 as found on select Beachcomber spa models, then only 7 buttons will function and the blower button is extra/not needed.

Measures 7.4 inches wide.

Has a 7 foot long cable included with LCD screen and phone style connector. Overlay included.

Original Balboa graphic overlay with button layout shown is included.

Need a QCA Spas majestic overlay for this panel? These are 15 years old, but we have 2 left.

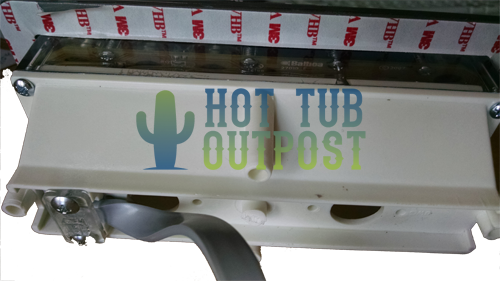

The back side of this Balboa control panel features a waterproof enclosure and cord.

There is also the paper-backed sticky mounting gasket which makes mounting the panel to the spa a breeze.

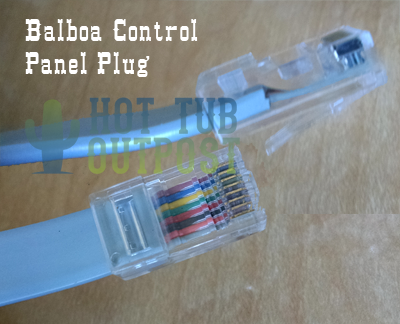

The plug type of this control panel looks like the image below.
