Balboa VL700S Digital 2P B L Control Panel 53811

VL700S Digital 2P/B/L. This Balboa 53811 control panel for hot tubs (VL-700S) is used by Hydrospa and other hot tub manufacturers.

Includes the 7 button Balboa overlay 11688 for 2 pump spas.

• 7 Cord with 8-Pin Phone Plug connector
• 7 Button: Mode, Warm, Cool, Light, Blower
• Jet 1, Jet 2
• Oblong 9-3/4" L x 3-1/8" W
• Used by Hydrospa and others

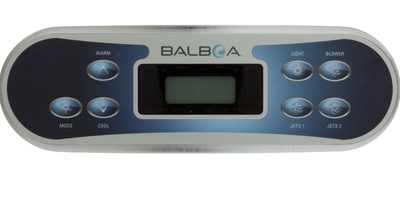

• Overlay 11688  included showing Mode, Warm Cool on the left and Light, Blower, Jets1 and Jets2 on the right of the center screen.

7 buttons include 2 pump buttons as well as a blower and light button.  On the left are Mode, temp up and temp down.

Rear view of control panel also showing the phone style plug.

Replacement option for:
MFG# 53896, S53896, HYDSPAVL700S,53812

Also works in select Artesian Spas.
Or see model without overlay 53812.

Need a 6 button overlay without the blower button?  Add 11756.
