CS9704Y HydroQuip Control System Lo-Flow Y7 Series CS9704Y-U-LF

Write a Review
SKU:
CS9704Y-U-LF
MPN:
CS9704Y-U-LF
Shipping:
Calculated at Checkout
Now: $988.59
RRP: $1,419.04

Description

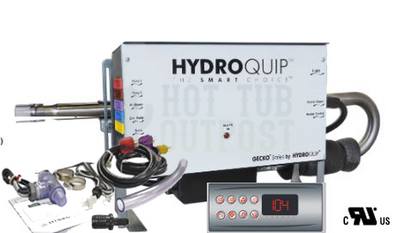

CS9704Y HydroQuip Control System Lo-Flow Y7 Series CS9704Y-U-LF is a low flow heater Control System by HydroQuip that includes the titanium heater and control panel along with the spa control box and cords.

Y7 Series, 240v, 4-wire, 4.0kw, Pump 1 (1 or 2 Speed), Pump 2 (1-Speed), Blower, Circ Pump

Gecko Y-Series platform by HydroQuip. Lo-Flo system that will run 3 pumps and a blower. Convertible 115/230V system, with topside control and cords.
Additional Information
Main Circuit - 1 or 2 -Speed Pump 240V
2nd Circuit - 1- Speed Pump 120/240V
3rd Circuit - 1- Speed Blower 120/240V
Spaside Control - Not Included
Heater Style - Low Flow, Wattage - 4.0kW
System Voltage - 240V
Component Configuration - Pump1 + Pump2 + Blower
Circulation Pump Option - Yes

Replaces:
  • CS9704Y-U-LF
  • CS9704-U-LF



Control System Details

  • 1.0/4.0kW Lo-Flo Slide Heater Assembly
  • Wi-Fi Enabled - (add the optional 0608- 521020 wifi module)
  • Topside Control Panel included - 8 button
  • 12V Light Assembly
  • Heater “ON” Indicator Light
  • Titanium Low Watt Density Heater Element
  • 3/4” x 1” Barb Adapter
  • Smart-Freeze Protection
  • Flow Switch Protected
  • Installation Kit with cords included
  • Detailed Owner’s Manual & Wiring Diagram
  • US and Canada UL Recognized
  • 2 Year Warranty
