HydroQuip Control System CS6P52Y-US-8 Flow Thru with K-8 Topside

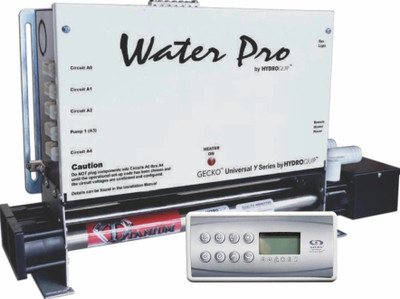

HydroQuip Y Series Spa Control 5.5kW Flow Thru Heater CS6P52Y-US-8 with in.K8 control panel included.

Lo-Flo system Y series Platform, Gecko Y Series, Slide, operates Pump 1 2-speed, Pump 2 2-speed,Blower,Circ pump with in.k8 control panel and overlay.

This Y Series Control System is manufactured by HydroQuip. Hydro Quip has been providing the hot tub, spa and jetted bath industries with premium equipment systems since 1981.

System Voltage 120/240V
Keypad Included
Supports Pump1 + Pump2 + Blower/Pump3
Heater Wattage 5.5kW
Heater Style Flow Thru

Includes the new slipstream heater type that replaces the u-bend type.

This control system CS6P52Y-US-8 is a 4-wire controller that is 120v/240v compatible. This item ships with all outputs set to 120v. Outputs can be reconfigured for 240v operation. This system here includes the K8 control panel.

Gecko Y Series, Slipstream Heater, Universal System, w/in.k8 Spaside

We also offer other systems like CS6P52Y-US which is also a 4-wire system, 120v/240v convertible with outputs set to 120v upon shipment. Outputs can be reconfigured for 240v operation. This system includes the K200 control panel.

The other system is a 3-wire system CS6P52Y-3W-4 which only operates at 240v and is not convertible to 120v. This system includes the K450 control panel.

DIMENSIONS OF CONTROL BOX CS6P52Y: 22.5”W x 11”H x 7”D

SHIPPING WEIGHT: 19 LBS

CS6P52Y-US-8
