Impeller Waterway 2HP HiFlo 310-4030

Write a Review
SKU:
310-4030
MPN:
310-8040
Shipping:
Calculated at Checkout
  • Impeller Waterway 2HP HiFlo 310-4030
  • 310-4030
Now: $26.77
RRP: $34.95

Description

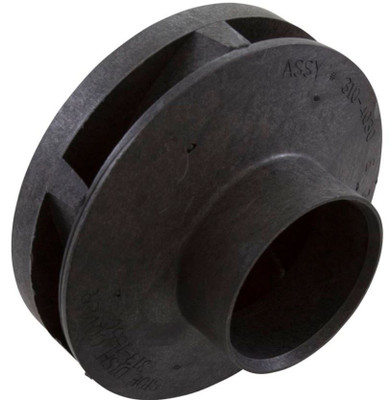

Waterway Pump impeller  310-4030 used in Waterway Hi-Flo assemblies

2.0 Horsepower - White Dot

2HP impeller also replaces 3104030 , 5032-09B , 601128 , 806105063212 , WW3104030B , WWP-85-8011.

Closed face impeller made for the HiFlo side discharge pump by Waterway.

Rated at 2.0hp, this pump impeller is used in a Waterway HiFlo pump wetend, and must be installed on a 2.0hp (or greater) thru bolt motor.

Impeller Type Closed Face
Impeller Diameter OD 3-7/8"
Vane Width ID 7/16"
Eye Diameter OD 1-7/8"
Eye Length 3/4"
Impeller Width OD 15/16"
Seal Seat Depth 1/2"
Shaft Length 15/16"
Shaft Diameter OD 5/8"
Seal Seat Diameter OD 1-9/16"
Manufacturer Waterway
Pump Application Hi-Flo "E"

Shaft seal sold separately, see PS-1000

We also offer the pump HiFlo wear ring 319-1390 and the volute o-ring O-108

Need a wet end instead? See 310-1141SD
