IN.XM Gecko Aeware Spa Pack Bundle Heater IN.K600-GF Control and 120V Cables

Currently unavailable, see our newer model Gecko control systems.

N.XM Gecko Aeware Spa Pack Bundle Heater includes: latest model in.xm system (0601-221104repl0601-221030), heater in.therm 4kw (0603-421002), in.k450 keypad (0607-005012) with 7 button overlay -3OP and 10 foot long cable, in.link cables kit (9920-101439).

The in.therm heater is designed to be totally maintenance free.  This intelligent 4kw heater integrates electronics in its power box.
This heater features a built-in temperature sensor and a water flow detection feature that eliminates the need for a pressure switch similar to the Balboa M7 system.
The heater has multiple power levels, so it extends heater life by only heating at high power when needed.

Heater measurements are 14 1/2" x 5" x 4".  The heater is mounted to the spa plumbing by the 2" plastic union nuts.

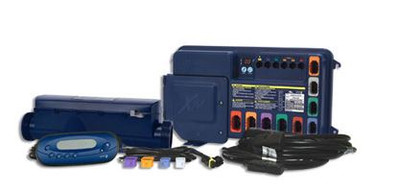

This complete spa pack bundle comes with the In.Xm spa system controller with 120 volt in.link cables, the 4kw heater and the in.k600 topside control panel and overlay.

Specifications
Input rating : 120/240 VAC (2-phase required, with or
without neutral) 48 A maximum, 60Hz.
Output ratings:
Output Voltage Current Device
Out 1 240 V 20FLA Pump 1
Out 2 240 V 15 FLA Pump 2
Out 3 120/240V 15 FLA Pump 3 or large Blower
Out 4 120/240V 6 FLA Aux 1
Out 5 120/240V 6 FLA Blower
Out 6 120/240V 6 FLA Circulation Pump (CP)
Out 7 120/240V 6 FLA Ozone Generator
Out 8 120/240V 6 FLA Audio/Video device

Easy to install, in.k450 keypad included - comes with an in.link connector.

IN.XM Spa Control Features:

• In.put - new input terminal bloc
• In.seal - watertight protection
• In.axess - board access prevention
• In.kin - kinetic heat monitoring
• In.flo - dry-fire protect
• In.t.cip - water temp. algorithm
• In.scan - system auto-diagnostic
• In.link - plugs and connectors
