PAL LED Bulb 2 Wire 12V Color Change LAU 39-LAU-2CU

DISCONTINUED- see  39-LAU-2DU

PAL Lighting LAU color changing bulb 39-LAU-2CU replaces the old discontinued 39-LAU which also replaced the LAV/LAL Lamp.

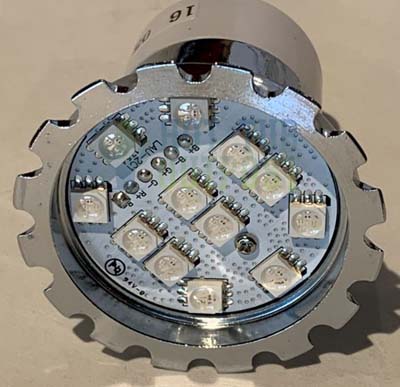

This is a 5 watt, 2 pin LAU2 type PAL, 2-Wire, 12vac, Color Change, LED bulb.

FEATURES:

• 12 x SMD RGB LED Array.
• Long Life, up to 100,000 hours.
• Selectable Color Options with 3 x Start Color choices
• Low Heat
• Low Power - only 5 watts
• Unlimited number of lights can be synchronized to color change in unison

The New LAU-2CU Color Lock LED Array Lamp now replaces the existing LAL Lamp.

NOTE:  Cover 39-2CC is no longer needed with this new model.  The replacement lens kit 42-RTLS  is what is needed in case a lens is needed (you no longer use the clear cover 39-2CC).

This new lamp is totally interchangeable with the LAL but incorporates added features and provides a better light distribution.

This outstanding Lamp provides six (6) Fixed Colors, two (2) Color effects and three (3) selectable start colors and can be fitted into all New and existing PAL Aquatic and Underwater Lighting.

Now with just the simple "flick" of the light switch you can change the color effect of your lighting feature.

No external controllers and synchronizes with other LAV series bulbs.

Installs in any 12v MR-16 base.

The LAU lamp can be set to fix at white, blue, green, red amber and purple and also offers 2 digital color effects, Color Change and Disco. The dip-switch allows the selection of the preferred 3 start colors, white or blue or color change.

The LAU lamp is powered by a safe 12v a/c supply and requires no external controller to operate.

• Low heat
• Low Power - only 2.7 watts
• 12x SMD RGB LED Array
• Long Life - up to 100,000 hours
• Unlimited number of lights can be synchronized to color change in unison

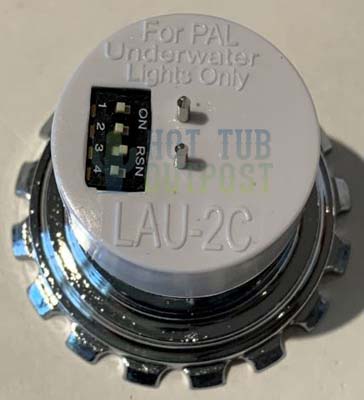

(older style bulb shown for illustration of dipswitch location)

REPLACES 57-330-1122 and 905256 , HOS-301-1049.

Additional items:

Parts Breakout.

Key 1    Replacement Lens Kit, PAL 2T2/2T4    42-RTLS
Key 2    Light Lens Screw Set, PAL-2000, PAL, 2T2/2T4 Nicheless    39-P100-01
Key 3    Discontinued Repl Bulb, PAL, 2-Wire, 12vac, Color Change, LED    Manf. # 39-LAU
Key 3    Replacement Bulb, PAL, 2-Wire, 12vac, Warm White Only, LED        39-LAU-2WW
Key 3    Replacement Bulb, PAL, 2-Wire, 12vac, White Only, LED    39-LAU-2W
Key 3    Repl Bulb, PAL, 2-Wire, 12vac, Color Change, LED        39-LAU-2CU
Key 3    Replacement Bulb, PAL, 2-Wire, 12vac/vdc, Color Change, LED    39-LAU-2DU
Key 3    Replacement Bulb, PAL, 2-Wire, 12vac/vdc, Color Change, LED    39-LAU-2DU
Key 3    PAL LAU-2ACU 12v ac/dc 5w 2-wire Cool White Only LED Array    39-LAU-2ACU
Key 3    PAL LAU-2AWU 12v ac/dc 5w 2-wire Warm White Only LED Array    39-LAU-2AWU
Key 3    PAL LAU-2ABU 12v ac/dc 5w 2-wire Blue Only LED Array    39-LAU-2ABU
Key 4    Trim Ring Kit, PAL,2T2/2T4Nicheless,White/Black/Gray/Tan,NS    39-P200-6K
Key 5    Lamp Harness Replacement, PAL, 2-Wire            39-P500-110
Key 6    Wall Fitting, PAL, 2T2/2T4 Nicheless, 1-1/2" Slip, Gunite    39-TWF
Key 7    Nut, Wall Fitting, PAL, 2T2/2T4 Nicheless, Fiberglass            39-TWN
Key 8    39-TCA
Key 9    Description Wall Fitting, PAL,2T2/2T4Nicheless,PAL-2000,FiberGlass,w nut 39-TWFA
Key 11    Description Wall Fitting Adapter Kit, PAL 2L/2T, Vinyl Liner    Manf. # 39-VAU

We also offer Lens 39-2cc-clear

Tech Note

2 Wire Replacement Bulb DIP Switch Settings

The start color is determined by the DIP switch settings 2 & 3.

• Color change = 2 & 3 both DOWN
• White = 2 UP & 3 DOWN
• Blue = 2 DOWN & 3 UP

DIP switch 1 determines the rate of color change

• UP = 10 seconds
• DOWN = 2.5 seconds

DIP Switch 4 determines whether we show the Red Color or the Aqua color

• UP = Aqua
• DOWN = Red

Replaces Powerite bulb.

If replacing two, it is best to replace both as the old style was not as bright as the newer ones.
