Prozone Injector V3 600002 Red PZ-684

DISCONTINUED

Prozone Injector V3 600002 Red PZ-684

Injector, 3/4"barb

Dynamic Venturi Injector™

Constructed of an ozone/chemical resistant polymer, it has two ports with an internal 360º orifice mixing chamber which provides complete dynamic mixing. Each 1/4" port has a built in ozone resistant check valve built into it.

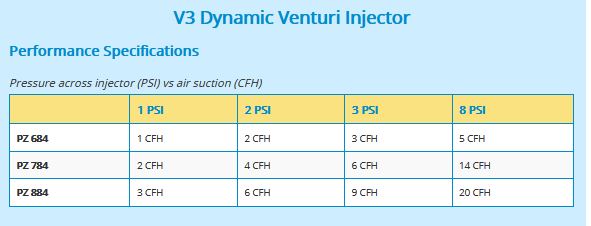

Performance Specifications:

Cubic feet per hour (CFH)

Replaces 2228-01 , Pz684 .

This is a state-of-the-art water/ozone mixer which provides maximum mass transfer of gaseous ozone or liquid chemicals into water with minimum back pressure.

A patented dynamic adjustable orifice can be optimized for extended performance and optimization of gas/liquid mixing.

Constructed of an ozone/chemical resistant polymer, it has two ports with an internal 360º orifice mixing chamber which provides complete dynamic mixing.

This has 3/4 inch tube barb connections as standard.

This one is the lowest CFH cubic feed per hour (1-5) PZ 684 red.

The blue is the middle one -600207 (2-14 CFH) and the white 600212 is the one with the largest value from 3-20 CFH.

We also offer 1/4 inch inner diameter vinyl tubing 55-270-1511 and 3/4 inch inner diameter tubing 55-270-1513 as needed.
