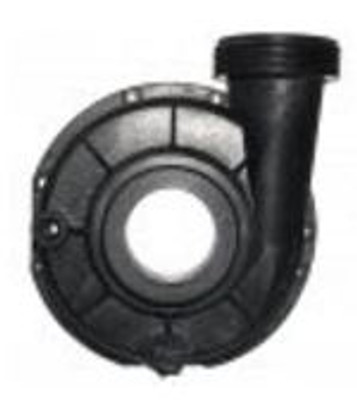

Sundance Spa Pump Front Housing with Dual Drains 6500-288

Sundance Spa 2.0HP Front Housing 6500-288 or SUN6500-288 with Dual Drain Plugs (7/2003 To 05/2009),

This item measures 7 1/8" side to side and 8 1/8" top to bottom.  The outside diameter of the 2 inch plumbing connection is 3 1/16" across the threads of the connections on both suction and discharge.

Front to back measurement is 3 1/4".

This pump housing has a side discharge. We also offer center discharge parts.

This housing used for Theramax/Theraflo Pumps: 6500-254, 6500-260, 6500-261, 6500-263, 6500-264, 6500-265, 6500-269, 6500-258, 6500-259, and 6500-293.

PLEASE NOTE: Close-Up Pictures Of Back Pump Housing Shows The Inner Ring That The Impeller Fits Into.

If Your Inner Ring Does Not Look Like This, Your Impeller Will Not Fit. Also, The 2 Nubs are Different Sizes.

If Your Housing Does Not Match Up To The Inner Ring (Shown Here)

Or The Nubs Are The Same Size, See Part Number: 6500-287. USED IN: TheraMax/TheraFlo 48Fr. Pump Components (1999+)
