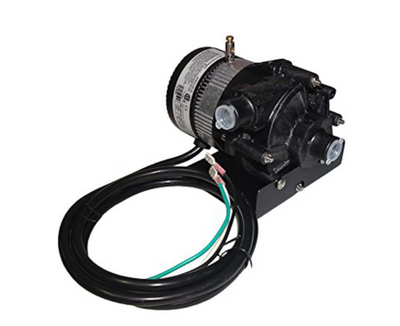

Sundance Spas 230V Circulation Pump 6000-125 6080U0010

Circulation pump Sundance Spas Jacuzzi 6000-125 by Laing Thermotec Series 6080U0010.

SD6000-125 or 6000-125 model pump E10 Laing 220v-240v with free shipping.

This water circulating pump is rated at 10GPM 50/60HZ, 220V-240V.

Circulation Pump, Laing, E10, 3/4" Barb, 240V with 4ft long cord.

This circulation pump is used on some of the following Sundance® Spas including:
A. Mid 2009+ 680 Burlington, Hartford, and Hawthorne equipped with a Circ Pump. 2009 and newer 780 Hamilton, Chelsee, Certa and Camden C. 2008 and newer 680 Burlington, Hartford, and Hawthorne equipped with a circ pump D. 2007 680 Hartford and Hawthorne equipped with a circ pump E. 2007 and newer 780 Hamilton, Chelsee, Certa and Camden F. 2006 Palermo, Bahia and Cayman G.

Also used in all 2005 780 Series spas H. All 2003-2004 Sweetwater models (Except Lagunas) I. All 1997 and newer North American/Export 800, 850 Series PermaClear Systems (Except 2005+ 880 Series Models) J. Replaces part number 6500-035 , SM-909-NHW-18 3/4

This circ pump is also installed on the following Jacuzzi® Spas: 2002+ Jacuzzi J-300 Circulation Pump 240V 50/60 Hz with Cord 6000-125 is for all Jacuzzi J-300 240 Volt Models.

Replaces:

• 909-NH-26 6920 9.5GPM
• 909-NH-18 6921 11GPM
• 73979 LHB7100138
• 959-NH-26 7065
• 909-NH-14 6509 6GPM
• 1212-NH-26 6975 12GPM
• 6500-035
• E10-NSHNNN2W-20
• 000-125

6050U0016 ,    6000-125 and 6000-125E are interchangeable.

This is an original equipment Sundance Spas circ pump 6000-125, SD6000-125 or SUN6000-125.

Or save with 59896292

Tools suggested include the new circ pump,spade lug, crimping tool, screwdrivers and pliers. Always remove power to spa before doing any work on it.
The procedure includes opening the side panel where the electronics are, opening the control box and removing the black, white and green circ pump wire from the lower right side of the circuit board. Remove circ pump wire from spa pack.  The circ pump flex line can be clamped with pliers to avoid water loss during the exchange.
