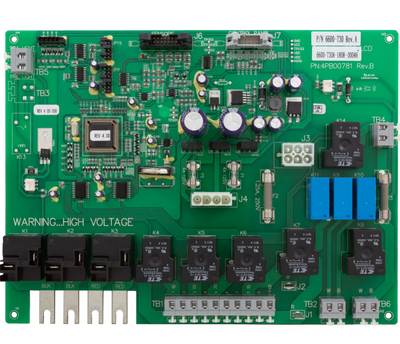

Sundance Spas LCD Pump 2-Speed 60HZ Circuit Board 2014 6600-730

PCB: LCD Combo Universal 60HZ For 880 Series Only Replacement for: #SD6600-092 circuit board for Sundance Spas.

Replacement Option For:
6600-028
6600-056
6600-092
6600-180 850 Series 1999-05 or if Pump 1 is 2 Speed

Circuit Board, Sundance / Jacuzzi, 850/J-300 LCD, 2 Pump, "Perma Clear", **Pump 1=2Spd, Pump 2 =1Spd, with Circ Pump functionality

Note we also carry 6600-728 for 1 and 2 pump systems where pump 1 is 1-speed..

Need a different PCB for your Sundance or Jacuzzi spa? Contact us for assistance.

Please note: Circuit Boards are non-returnable items as they cannot be resold to another spa owner as new. On the bright side, you will also know that the board you receive is pristine, factory new and has never been installed before. See our return policy for further details. Circuit boards ARE COVERED under original MANUFACTURER'S WARRANTY.

Contact us if you need assistance in determining the correct board for your spa control system.

Jumper settings are as follows:

JP19 Jumper Bank
JP19-1 - On - Celcius, Off - Fahrenheit
JP19-3 - On - 50Hz, Off - 60Hz
JP19-5 - On - LED Lights, Off - Incandescent Lights
JP19-7, 9, and 11 are not used

JP9 Jumper Bank
JP9-1 - On - Enables Trouble Log, Off - Disables Trouble Log
JP9-3 - On - Enables ILOC, Off - Disables ILOC
JP9-5 - NOT USED
JP9-7 - On - 60A Logic Allows 2 Pumps on w/Heater, Off - 50A Logic Forces Heater Off When More Than 1 Pump is ON
JP9-9 - On - Enables Pump 2 on -728/-730 pcb's and Pump 3 on -392 pcb, Off - Disables
JP9-11 - On - 40A Logic Forces Heater off w/ Any Pump in Hi, Off - Disables
JP9-13 - On - Allows Only 1 Pump w/Blower to Operate at a Time, Off - Blower, Pump 1, Pump 2 Can Operate at the Same Time
JP9-15 - On - Recall All Factory Settings, Off - The Jumper Must Remain Off During Normal Operation
