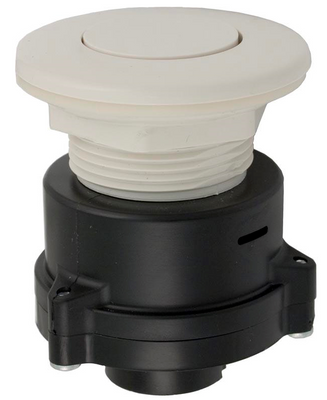

TecMark Air Button White TDI 3242 Series MPT-01010

TecMark Air Button 3242 Series. Low profile button minimizes the risk of false actuation. Air button MPT-01010-3242, white.

This brand name Tecmark flush mount air button delivers a pulse of air through air tubing to an air switch located in the spa pak. The air switch in turn switches a device on or off.  Button is 2 9/16" wide. Low profile button minimizes the risk of false actuation.

Mounting hole 1-5/8"

The actuator button itself is capable of delivering a pulse of air up to 100 feet away using 1/8 inch air tubing, but the actual usable distance depends on the air switch and system.

Color    White
Face Diameter    2-1/2"
Hole Size    1-5/8"

MPT Series Air  Transmitter Button Features and Specs

Field tested critical components specifically selected to operate reliably
in temperature extremes of -40˚ to 200˚ F (-40˚ C to 93˚ C)

• 100,000+ cycle life under full mechanical and thermal loads
• EDPM bellows material
• Mounting through materials from 1/16” to 5/8” thick
• Connector accepts 1/8” or 3/16” I.D. flexible plastic or rubber tubing
• Bottom accepts 1/2” PVC conduit
• Unique check valve eliminates pump'Auxiliary fitting accommodates direct venting of check valve system
  when used in foam insulated applications
• Cylinder assembly sold separately
• Button and bezel kit sold separately
• Extender kit is available that can accommodate mounting thickness up to 1-1/2”
• Interchangeable button and bezel kits in a large variety of colors and finishes

Front to back measurement 3.06". Outside button diameter 2 1/2". Hole size required 1 5/8"

Replaces
3-15-0126
11-1003
MPT-01010-3242 (Tecmark)
3-15-0126
59-319-1200

Replaces 316126 , 593191200 , 9243-03 , 9244-10 , MPT-3242 , MPT010103242 , TDI-85-1017 , TDIMPT3242W .

Air tubing is available here if needed: 63000 .
