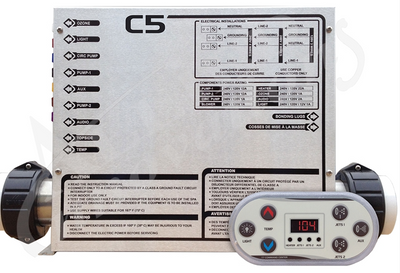

United Spas CBT7 Control System C5-B 240V 4kW Heater and Topside

United Spas 3-70-0112 CBT7 complete Control System C5-B 240V 4kW Heater and Topside control panel with 6 button overlay.

Includes the 4kW heater mounted horizontally with barb fittings face up.

United Spas control system with 6 button control and spa pack with heater.

Now ships as C6 current model pack with T7S topside.

240V, Dedicated 240V Convertible to 120V
Heater Mounted on Bottom

Operates:
Pump 1: 240V
Pump 2: 240V
Blower: 240V
Ozone: 240V
Light: 120V/240V/12V
Audio: 12V

Includes:  C6 latest model spa pack that replaces the discontinued C5
2" Flo-Thru 4.0KW Electric Heater
T7S Topside
T7S 10-Pin to 10-Pin 10' Cord

Shipping newest bundle - Includes blue overlay with 6 buttons.  CBT7 ships with C6 pack and T7S topside.

Also includes manual and user guide.

Note equipment hookups are now on the right side of pack following many requests in the industry to switch the hookup to the right side because most Spa controls and spa companies have it set up this way. This in order to easily be able to replace existing Balboa or Gecko systems and the rest of the controls without modification. This also led manufacturer to discontinue the old style C5 and replace it with the new model C6. 99% of the external equipment cables coming from the left will reach around the back of the control box without any issue,  but if you need a specific extension, contact our support team with type of cable needed and can offer a longer one.

We also offer the T8S control panel if needed. Otherwise this bundle ships standard with the T7S which is compatible as a replacement for the old T5 topside.
