VS500Z Balboa Slide Series CS4109B-US-4.0 Control System VL200

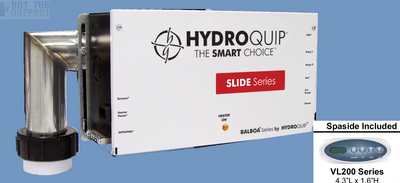

HydroQuip CS4109B-US-4.0 Control System Balboa Slide Series With VS500Z Control Panel

This Balboa Slide Series Control System operates a single 2 speed pump.

Featuring a 4.0 kilowatt heater.

Includes a VL200 Small Oval control panel with overlay.

Balboa Series Slide, P1/2, w/Small Oval control panel - VS500Z, and 4.0kW Heater

STANDARD FEATURES of the CS4109B
M7® Technology Equipped
 1.0/4.0KW, Slide “L” Heater Assembly
Spaside Control VL200 with overlay included
12V Light Assembly
All Circuits Convertible to 120 or 240VAC
Heater “ON” Indicator Light
Standard, Economy & Sleep Modes
Freeze Protection
Easy To Install & Service
Installation Kit
Detailed Owner’s Manual & Wiring Diagram
US and Canada UL Recognized
2 Year Limited Manufacturer's Warranty
Free Shipping in the USA

System Specifications

ELECTRICAL INPUT SPECIFICATION: SINGLE PHASE,120/240VAC, 60HZ

ELECTRICAL OUTPUT SPECIFICATION::
CIRCUIT(S)   MAXIMUM AMPS
PUMP(S)   12A
BLOWER   12A
OZONE   1A
CIRCULATION PUMP   4A
LIGHT   1A
HEATER   23A (5.5KW) OR 18A (4.0KW)

REQUIRED FLOW RATE: 25 GPM
SYSTEM DIMENSIONS: 15”W x 11”H x 6”D
SHIPPING WEIGHT: 18 LBS
PACKAGING / SHIPPING : INDIVIDUAL (HQ STOCK)
FOB CORONA, CA 92880
WARRANTY:
2 YEAR LIMITED WARRANTY STANDARD
