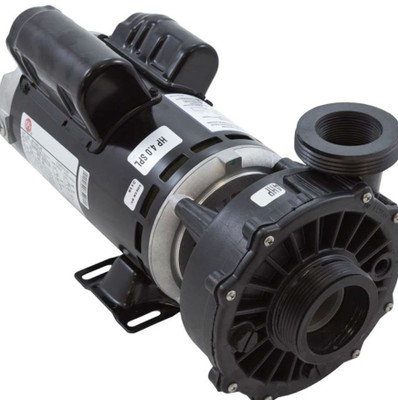

Waterway Hi-Flo 4HP 2-Speed Pump 3421621-10HZW Century

currently unavailable - see 3421621-10 or 300-6200SD

Waterway 2-speed pump 3421621-10HZW.

• 4.0hp Waterway spa pump
• Century quality motor
• 230 volts
• 2-speed
• 48 frame
• 2-inch plumbing connections for 2 inch ID hose/pipe.
• Manufacturer's 1-year warranty

The Hi-Flo Side Discharge 48-Frame is an efficient pump designed for high volume discharge for faster filtering cycles.

Spa Pump Features:

• High volume side discharge efficiency
• 60% more efficient than our center discharge pumps
• 2" intake and discharge
• Wet end can be rotated in 90 degree increments for easy installation
• Large 6-1/2" diameter wet end for higher head pressure
• Dimensions (H x W x L): 7.5" x 7.375" x 14.23"


• California Title 20 Compliant


  Manufacturer	Waterway
  Pump Model	Hi-Flo
  Speed	2 Speed (2-Spd)
  Motor Voltage	230v
  Drain Plug Location	3,6,9 o`clock
  Suction Style	Center
  Suction Connection Type	Male Buttress Thread (mbt)
  Suction Pipe Size	2"
  Discharge Style	Side
  Discharge Connection Type	Female Pipe Thread (fpt), Male Buttress Thread (mbt)
  Discharge Pipe Size	2"
  Horsepower	4.0SPL
  Motor Frame	48 Frame Thru-Bolt
  Motor Amperage/Wattage	12.7A/3.4A

  Replaces 3421621 , 3421621-10 , 625243 , 806105074850and 5032-400 , 625243 , T55MWCCK-1213


Pump cord sold separately if needed such as:

• AMP Cord 30-1001C
• Molded Lit cord 30-0220-48-K

Pump unions are available if needed: 0602-20

For pump union o-ring, use O-43.
