Waterway Pump Ex2 1.5Hp 115V 1-Spd 17 Amp 3410610-1U

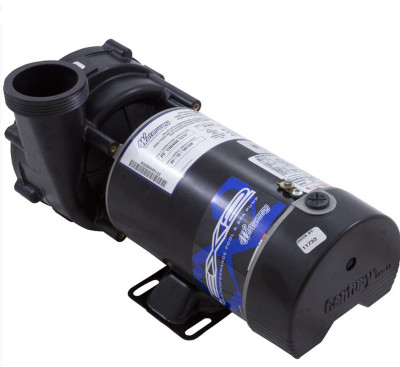

Waterway Plastics Pump complete, EX2, 1.5Hp, 115v, 1-speed, 17 Amp 3410610-1U connects to 2 inch inner diameter plumbing.

Has center suction and side discharge.  48 frame 1.5HP motor and 1.5HP wet end.

115 volt operation, single speed pump rated at 1.5SPL horsepower/17 amps.

Can replace discontinued Watkins Wavemaster pump that operates at 115 volts.

Free shipping in the continental USA.

Need unions? See 0602-20

We also offer a pump cord with AMP connection if needed 30-0324-48

Spa Pump Features: Waterway Ex2, 1.5SPL, 115v, 1-Speed, 48fr, 2" plumbing connections (3 inches across pump threads)
True continuous rated horsepower, available in 1.5, 2.0, 2.5, and 3.0HP styles (SEE AVAILABLE STYLES TAB)
48 or 56 frame, single or dual speed (energy saving)
Use more jets per pump
Same physical size as Aqua-Flo XP2, XP2e (fits within the same volume envelope)
Can be used as substitute or retrofit to Aqua-Flo model XP2 or XP2e pumps and similar pumps and wet ends
Made in USA from highest quality materials with UL and CUL certifications
CE and TUV certification on export pumps to ensure product performance
Equipped with high efficiency electrical motors, custom designed for spa applications


Motor Voltage    115v
Speed    1 Speed (1-Spd)
Motor Amperage/Wattage    17.0A
Horsepower    1.5SPL
Manufacturer    Waterway
Pump Model    EX2
Suction Pipe Size    2"
Suction Connection Type    Male Buttress Thread (mbt)
Suction Style    Center
Discharge Pipe Size    2"
Discharge Connection Type    Male Buttress Thread (mbt)
Discharge Style    Side
Motor Frame    48 Frame Thru-Bolt
Drain Plug Location    4,6,9 o`clock

This pump may be received from the manufacturer with or without a capacitor attached. If the capacitor plays a role in your installation please contact our Sales Team for verification.

Lead time can be 7-10 days for this pump model.
